Amfibie-Bil (ATV)

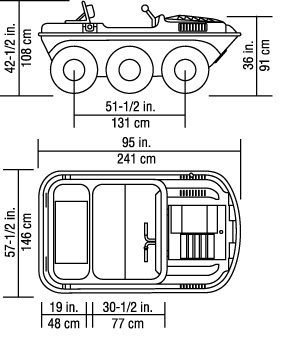

Vanguard-2 (6x6)
Engine : 4 cycle overhead valve V-Twin gasoline engine,electronic ignition,
full pressure lubrication and oil filter.
2 year warranty
Model Briggs & Stratton Vanguard
Horsepower :16
Displacement : 480cc
Cooling : Air cooled
Starting : Electric/Recoil
Brakes : Hydraulic
Steering : Skid steering by two hand-controlled levers activating brakes
to stop the wheels on either side of the vehicle,
allowing it to turn within its own length.
For ease of handling,the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle and dash mounted choke control.
Light switch and ignition switch.
Clutch & Transmission Belt-driven,Continuously Variable Transmission (CVT) maximizes engine power
to the transmission with high and low range forward,neutral and reverse,compactly housed with
an efficient planetary differential.
Drive System Roller chains drive machined sprockets that are spline-fit onto 1.25" diameter axles.
Bearings are greaseable and are protected with double-sealed outer flange assemblies.
Frame Formed steel channel construction,welded for high strength and durability.
Polyester powder coated for lasting protection.
Body Vacuum formed High Density Polyethylene (HDPE)
Full Skid Plate Optional
Load Capacity on Land (without accessories) 700 lbs/ 317 kg total
140 lbs/ 63 kg max in rear compartment
Towing Capacity 1200 lbs/545 kg
Seating Capacity : 4 persons on land, 2 persons on water
Fuel Capacity : See-through polyethylene fuel tank, 8.4 US gallons (7.0 Imperial gallons/32 litres)
8 hours of operation
Speed (on land) 22 mph / 35 km per hour
Speed (on water) : 2.5 mph / 4 km per hour
Shipping Weight : 765 lbs/348 kg
Axle Bearing Extensions Front optional
Hourmeter Standard
Voltmeter Optional
Temperature Gauge N/A
Low Charge Rate Light N/A
Low Oil Pressure Light N/A
Tire Goodyear Runamuk 22 x 10.00-8 NHS
Ground Pressure 2.1 psi (14.5 kPa) using tires, 0.67 psi (4.6 kPa)
using tracks.
Operating Conditions : All weather,all-terrain,-40°C to +40°C
Vanguard-2 (6x6)
Engine : 4 cycle overhead valve V-Twin gasoline engine,electronic ignition,
full pressure lubrication and oil filter.
2 year warranty
Model Briggs & Stratton Vanguard
Horsepower :16
Displacement : 480cc
Cooling : Air cooled
Starting : Electric/Recoil
Brakes : Hydraulic
Steering : Skid steering by two hand-controlled levers activating brakes
to stop the wheels on either side of the vehicle,
allowing it to turn within its own length.
For ease of handling,the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle and dash mounted choke control.
Light switch and ignition switch.
Clutch & Transmission Belt-driven,Continuously Variable Transmission (CVT) maximizes engine power
to the transmission with high and low range forward,neutral and reverse,compactly housed with
an efficient planetary differential.
Drive System Roller chains drive machined sprockets that are spline-fit onto 1.25" diameter axles.
Bearings are greaseable and are protected with double-sealed outer flange assemblies.
Frame Formed steel channel construction,welded for high strength and durability.
Polyester powder coated for lasting protection.
Body Vacuum formed High Density Polyethylene (HDPE)
Full Skid Plate Optional
Load Capacity on Land (without accessories) 700 lbs/ 317 kg total
140 lbs/ 63 kg max in rear compartment
Towing Capacity 1200 lbs/545 kg
Seating Capacity : 4 persons on land, 2 persons on water
Fuel Capacity : See-through polyethylene fuel tank, 8.4 US gallons (7.0 Imperial gallons/32 litres)
8 hours of operation
Speed (on land) 22 mph / 35 km per hour
Speed (on water) : 2.5 mph / 4 km per hour
Shipping Weight : 765 lbs/348 kg
Axle Bearing Extensions Front optional
Hourmeter Standard
Voltmeter Optional
Temperature Gauge N/A
Low Charge Rate Light N/A
Low Oil Pressure Light N/A
Tire Goodyear Runamuk 22 x 10.00-8 NHS
Ground Pressure 2.1 psi (14.5 kPa) using tires, 0.67 psi (4.6 kPa)
using tracks.
Operating Conditions : All weather,all-terrain,-40°C to +40°C
